2nd Hand Filling Equipment

We mainly offer new equipment but occasionally we have available some second hand equipment.  Alternatively we can source it for our clients. Please have a look below at the currently available second hand machines we have.

Complete Bottling Line for water speed 1.500 bph on 0,5 ltr

IC Filling Systems Ltd is currently offering a *B R A ND  N E W  Complete Bottling Line for water  speed 1. 500 bph. Click here to see the layout. Available immediately.The bottling line is composed of the following machines :

• 2 cavities PET blowmoulder unit by SMF Germany and exit air conveyor to filler

• Compressed air generator for blowmoulder only

• monoblock rinser-filler –capper 9-10-1 by ICFS Ltd

• 2 sets of moulds one for 500 ml and one for 1,500 ml suitable for 28 mm plastic caps

• Heat shrink cap tamper-evident seal applicator • full wraparound, paper cold glue labeller

• Complete conveyor system.

• CIP unit Contact us for special offer price.: 50 % of full price. *Never delivered never used. Available now as customer out of business.

See photos gallery below  and videos on right for pre delivery inspection.

2 Cavities Semi-automatic Jumbo Blower -on offer 50% off

Another offer is regarding 2 cavities semi-automatic Jumbo Blower SMF Germany, with air compressor and preform warming tunnel. BRAND NEW , including one set of  2 cavities 500 ml  mould for milk or yogurt bottle 28 mm plastic cap (click here to see bottle  drawing).                         See photo of  other bottles available on demand. Ready in stock NOW as the  customer  has gone into liquidation For details please call +44 0131 335 3335 or send an e-mailto    sales@intercaps.com

Automatic Light Gravity Monoblock for filling, corking type 24/4R

We are glad to inform you that we have ready for delivery a second hand monoblock 24/4R already refurbished here in our workshop. Below you will a description with the main features, and some pictures. We hope the machine can be interesting for you, we remain in any case at your complete disposal for any further informaiton.

Altitude above sea level of the factory m ≤ 300 Relative internal max humidity 90% Min – max internal temperature °C 4- 40. Filler Sense of rotation (clockwise – anticlockwise) Clockwise Internal Ø of bottle opening (standard) Min . 17 mm Filling tube diameter 15 mm. Working table height 1.050 mm +/- 50 mm. Stainless steel chain Pitch 38,1 Width 82,5 Stainless steel conveyor belt 100X100mm closed. Compressed air – low pressure (bar) 7.

PRODUCT TO BE FILLED: Product WINE Flat or carbonated FLAT. Filling Temperature Environmental. CONSUMPTIONS: Compressed air 4 Kw Installed power 400 Nl/min ELECTRICAL SPECIFICATION: Electrical Power 380 V – 3 phases +N/+T Control voltage (V) 24/DC

BOTTLE CAPACITY: up to  0,75 lt. FILLER SPEEDS Max production rate: bph 5.000. BOTTLES Bottle material: Glass. Bottle horizontal section: Cylindrical Min – max bottle diameter mm 55 – 100 Min – max bottle height mm 220 – 360. Neck dimension mm – Min max level from mouth opening (mm.) 35-80 CAPS Cap material Natural cork Caps dimension(diam. x h) mm (min-max) 23-28- 38-50

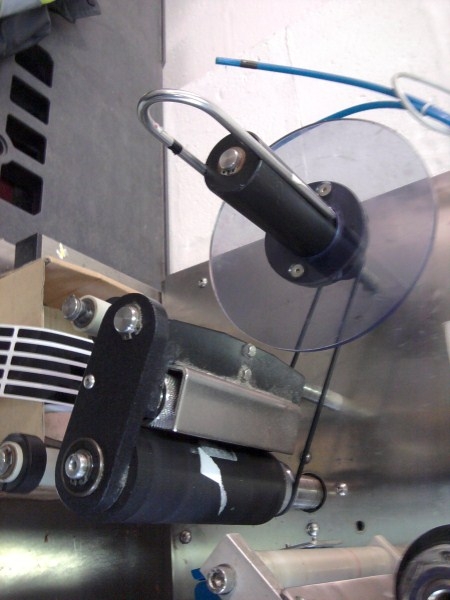

Self-adhesive 4 head rotary labeller

IC Filling Systems Ltd, offers a B R A N D   N E W - never used machine for front and back label application on round or square bottles Maximum output 3,000bph.
