Micro Beer Filling Machines



Microbrewery Bottling Equipment

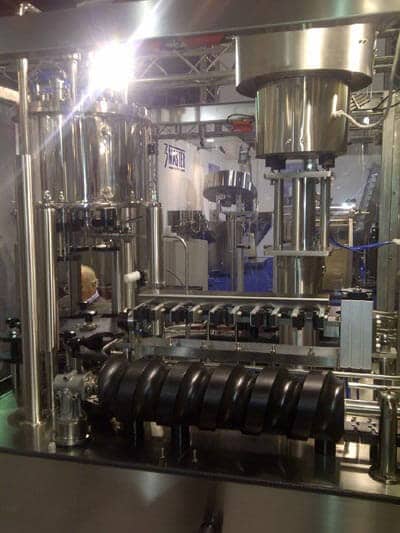

Automatic Isobaric Miniblock Mod. 5.5.1 for beer

This machine is suitable for rinsing, isobaric filling and corking of glass roundbottles. Capacity of 500bph x 0.5 lt.

MINIBLOCK is able to fill the following products: still and sparkling products such as wine, beer, water and soft-drinks.

The machine is constructed of following components:

-Linear rinser – equipped with 5 pneumatic pincers. With the use of a pneumatic pincer device, the bottles are grabbed from the conveyor line and are inverted over the injections nozzles. They are then rinsed with water and re-positioned on the conveyor line.

Isobaric filling turret with 5 filling valves. The bottles are positioned under the filling valves by a star-wheel.

The filling process phases are as follows:

1) Air pre-evacuation from the bottles through vacuum pump (double pre-evacuation for beer available)

2) Balancing of the bottles pressure through gas inert injection

3) Isobaric filling

4) Pressure release

The automatic crown cork turret is equipped with a vibration hopper and stainless steel chute. The MINIBLOCK 551 is suitable also for natural cork and aluminium screw caps application if required.

MINIBLOCK has been designed in a certain way so one operator can load and unload the bottles on the same side of the machine through a bottle infeed/outfeed platform. Dimensions of MINIBLOCK: 1500 x1200x 2000 mm.

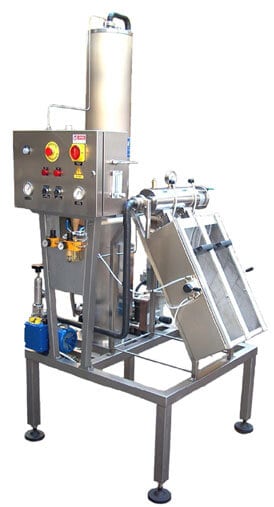

Manual Fillers for Bottles 2 or 4 head manual filler with carbonator for beer, carbonated soft drinks or water. Place the bottles by hand, fill and removed by hand

Start up kit Bottle carbonator and two head filler

C.I.P. (Clean in Place) system for microbreweries

According to the specific cycles and stages of the cleaning process the whole system is designed to enable sterilisation and cleaning of tanks, piping, and equipment without disassembly of parts or components. This assures the following advantages: – Cleaning of not easily accessible parts, – No removal of the plant
