Handle Applicators

IC Filling Systems supply a range of handle applicators for both plastic ‘clip’ style handles on PET bottles and also self-adhesive handles on PET bottles and multipacks.

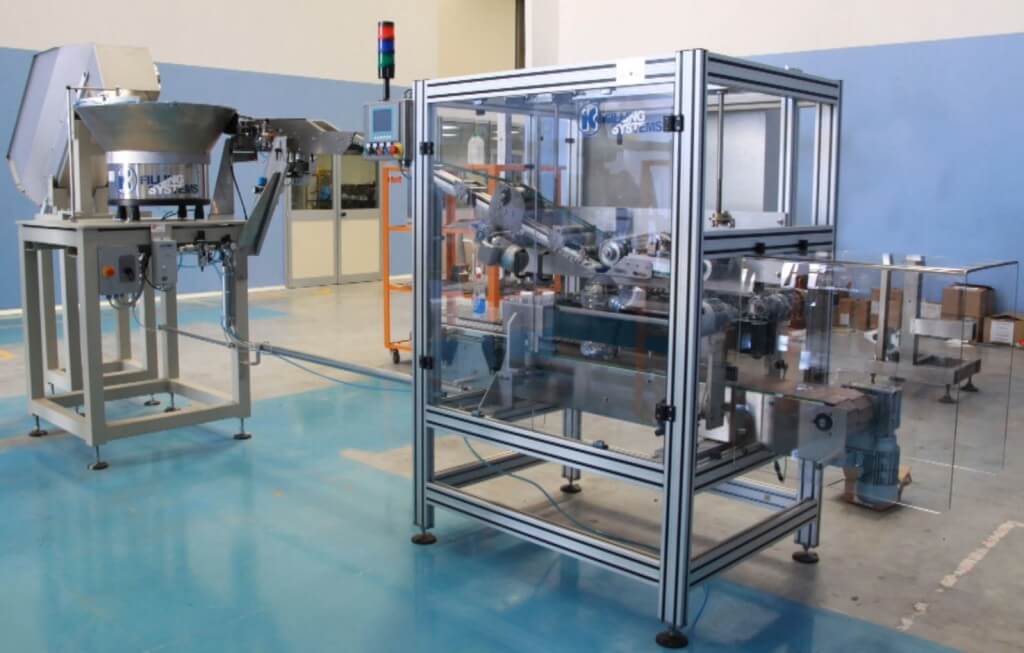

Handle applicator & sorter

Automatic applicators for plastic ‘clip’ handles including the NH-K2 for large capacity bottles (3, 4 or 5ltr)which are already filled capped and labelled.

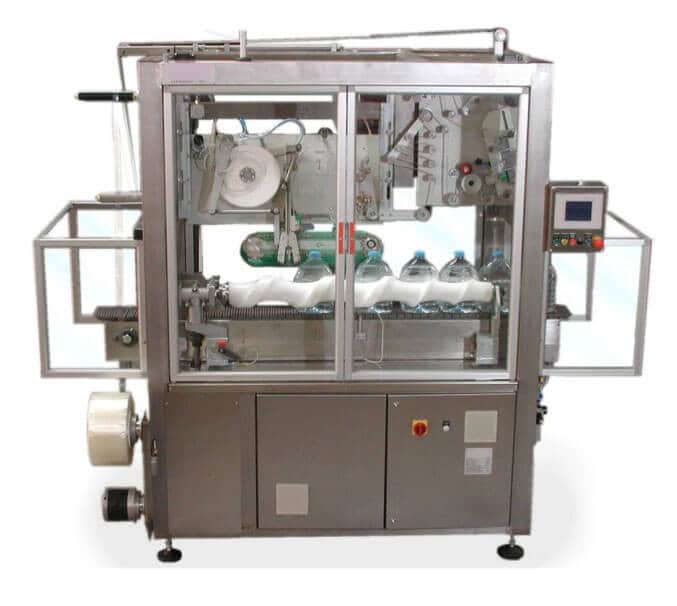

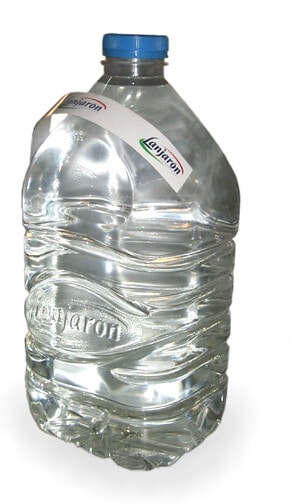

Self-adhesive handle applicator for individual bottles

This machine is capable of applying self-adhesive handles made out of a special transparent tape and carton label. Bottles, are fed from the feeding lane to the central conveyor of the machine, where they are automatically spaced for the application of the handle.
This new technology is particularly good for producers who want an alternative type of handle application to traditional plastic clip handles on 5ltr (or bigger) size bottles. This system allows the producer to havea substantial saving on the unit cost of a plastic clip handle versus a self-adhesive handle.

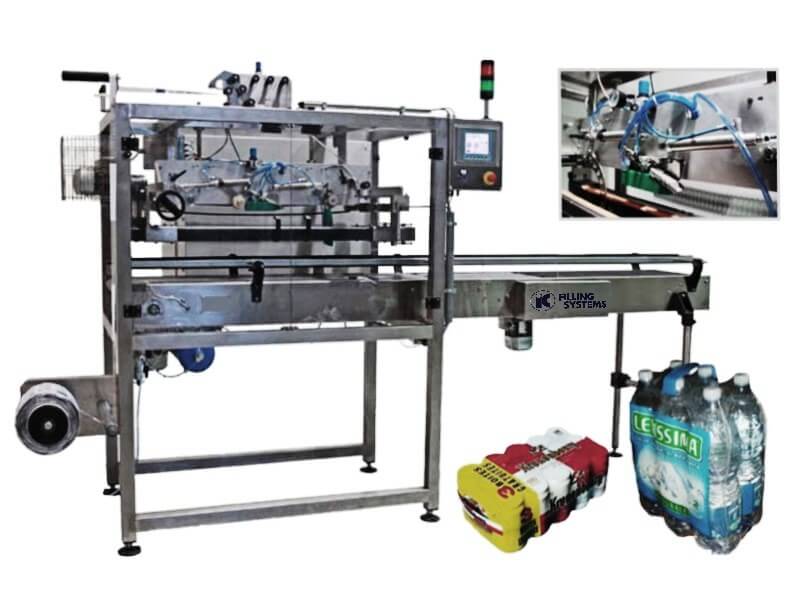

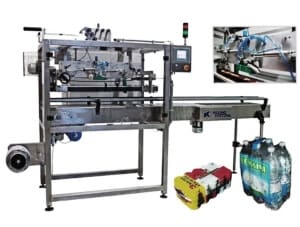

Self-adhesive Handle applicator for multipacks

This machine is capable of applying self-adhesive handles made out of a special transparent tape and carton label. Packs are fed from the feeding track to the central conveyor of the machine, where they are automatically spaced for the application of the handle.
The machine can be equipped a second tape-roll holder for rolls of 5000 m length. The adhesive tape is unwound by a motorised roller, electronically controlled according to the quantity of packs being fed; the carton label is mechanically applied by a cam during the passage through a set of rollers; the tape is applied on the rear and front side of the pack by a set of arms, pneumatically operated.
