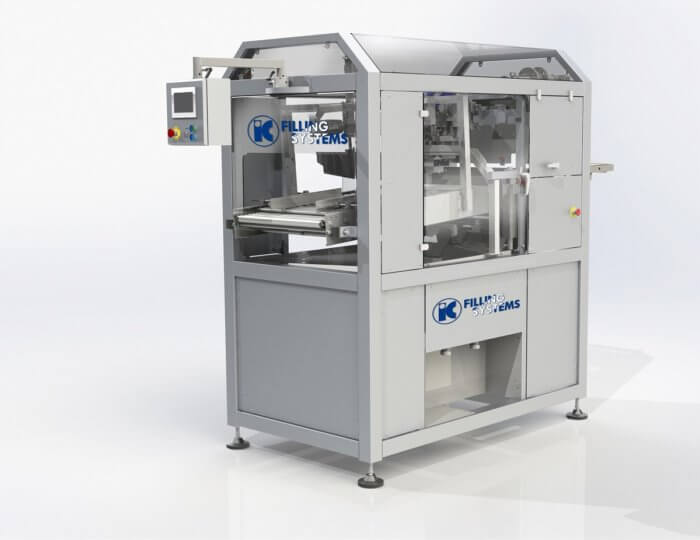

AUTOBIB Bag in Box High Speed Automatic Filling Machine

Modern and robust, with top performance and full automation, the automatic AUTOBIB bag in box filling machine allows independent high-speed filling of liquid and semi-liquid products in vacuum bags for BIB, Pouch and Cheertainer®.

Autobib Bag in Box Technical Characteristics

The Autobib bag in box automatic filling machine functions in one operation that includes the following steps: continuous presentation and introduction of vacuum bags, air removal, filling, nitrogen injection, tap repositioning, ejection of the filled pouch, detachment and unloading.

  • To meet production needs for high-speed production rates, the AUTOBIB filling machine can be fitted with a dual head.
  • A built-in CIP circuit is set or can be configured to allow automated cleaning cycles.
  • Boxing is manual (with operator) or automatic with the BIB-BOX.
  • The AUTOBIB filling machine can be built into an existing line or comes as part of IC Filling Systems complete packaging line: the BIB AUTOLINE.

Checking...

Ouch! There was a server error.
Retry »

Sending message...

Download Bag in Box Brochures

We'll send links to download our range of Bag in Box Brochures to your inbox right away...

GDPR data storage consent:



Pouch Module

To meet changing market needs, the AUTOBIB bag in box machine can be fitted with a “Pouch” module. It allows the very high-speed filling of this innovative type of packaging. Changeover time for filling BIBs or Pouches is less than thirty minutes.

AUTOBIB bag in box connected filling machine

Access interface functions directly using your smartphone, tablet or PC to track:

  • Production (recipe management, display of information on rate and output, production planning management with current status);
  • Statistics (display of statistics – machine use per mode – list of recipes with number of BIBs produced, total number of BIBs, start-up, cleaning, etc.);
  • Management of machinery and equipment (display of time remaining before preventive maintenance).

AUTOBIB Work Rate

Bib

3 L 720 filling rate /hour
5 L 610 filling rate /hour
10 L 440 filling rate /hour
15 L 345 filling rate /hour
20 L 280 filling rate /hour

Pouch

1.5 L 585 filling rate /hour
3 L 525 filling rate /hour

AUTOBIB Characteristics

  • Liquid output: 80 HL/h
  • Air supply: 7 to 10 bar
  • Nitrogen supply: 1 to 4 bar
  • Air flow: 7 m3/h
  • Pulse counter (72 points per litre)
  • Connection: Macon diameter 40
  • Noise level < 85 db
  • Footprint
    • Depth: 1880 mm
    • Height: 2100 mm
    • Width: 1130 mm
    • Weight: 409 Kg

AUTOBIB Options

  • Chassis: stainless steel
  • Work surface: plane on motorised rollers with recovery and evacuation bin
  • Filling/cleaning temperature: liquid circuit for continuous use up to 110°C with crimped tubes mounted on connections; clamp diameter 25 mm, including CIP circuit and 316L stainless steel tubes with beveled welding
  • Pumps: without standard pump
  • Pliers type: for Vitop-type taps with a high neck
  • Nitrogen supply:
    • Oxycontrol filling, nitrogen injection and/or sweeping and/or blowing
    • Built-in 0-4 bar pressure regulator
  • CIP circuit: built-in and guided; automatic cleaning of air vacuum circuit
  • Connection: Macon diameter 40
  • Display: automation and B&R display with 7″ multifunction color touch screen
