Volumetric Filling Machines For Liquid Sauces

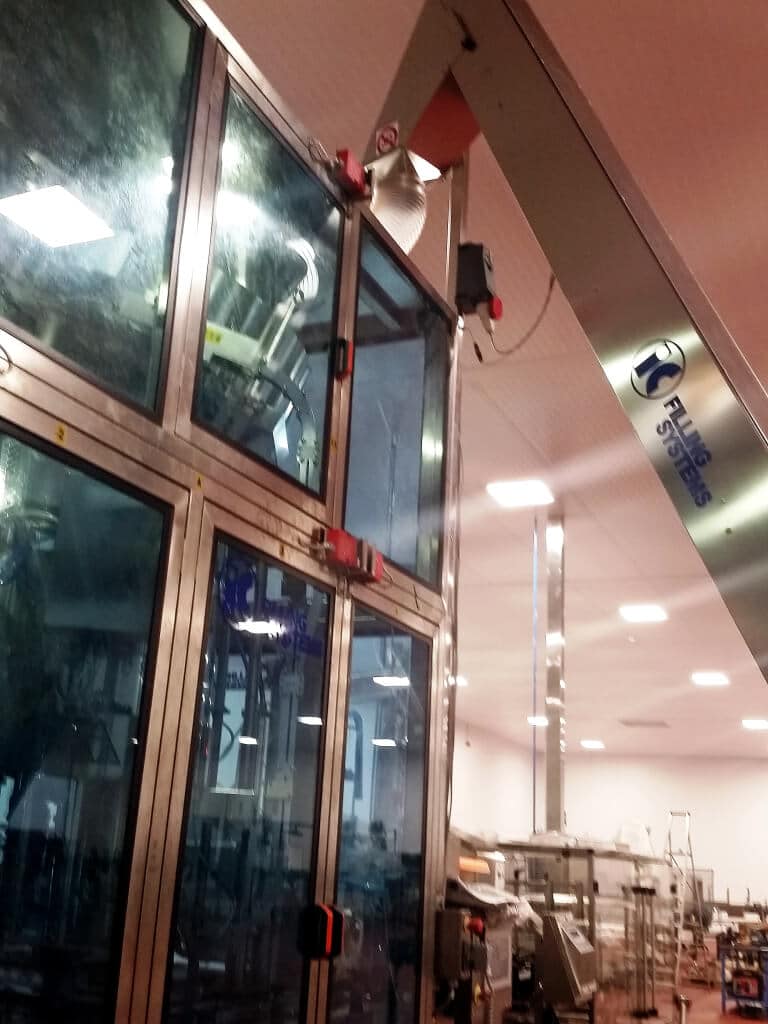

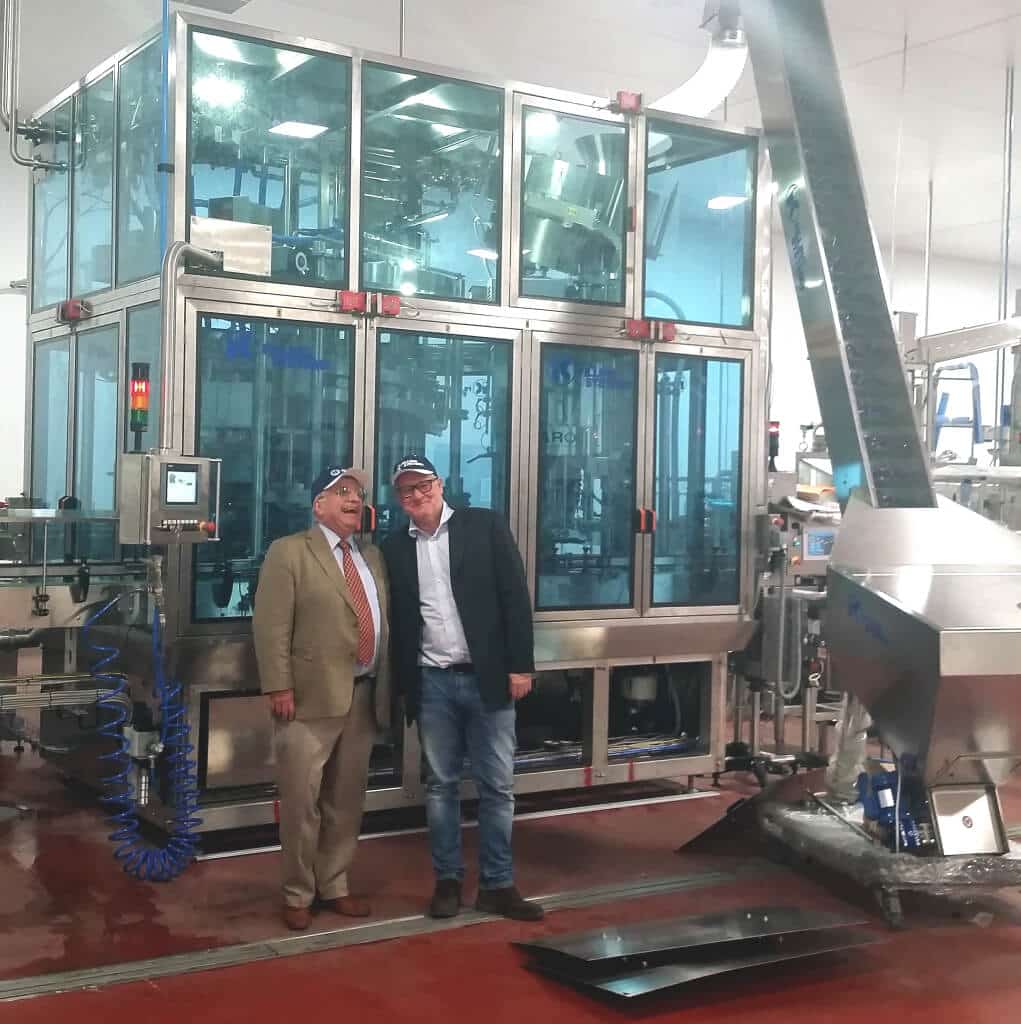

12,000 Bph Hot Sauce Piston Filler & Capper

12,000 Bph Hot Sauce Piston Filler & Capper

We supply Volumetric Filling Machines For Liquid Sauces both in semi-automatic and automatic versions for edible oils, yogurt, milk, sauces and chemicals.

The concept of volumetric filling is supported by hygenic non-contact filling which can be achieved by utilising pinton filling valves (operating in a way similar to a syringe in two steps aspiring and dispensing) or weight filling cells, where the product is weighted and the valve closed when the approprieta weight of the container is reached.

Other volumetric methods used by IC Filling Systems are the flow meters dosing system that utilises the magnetic properties of  each product to measure the quantities flowing through the valve. Contact us for more details and to discuss your scope of supply.

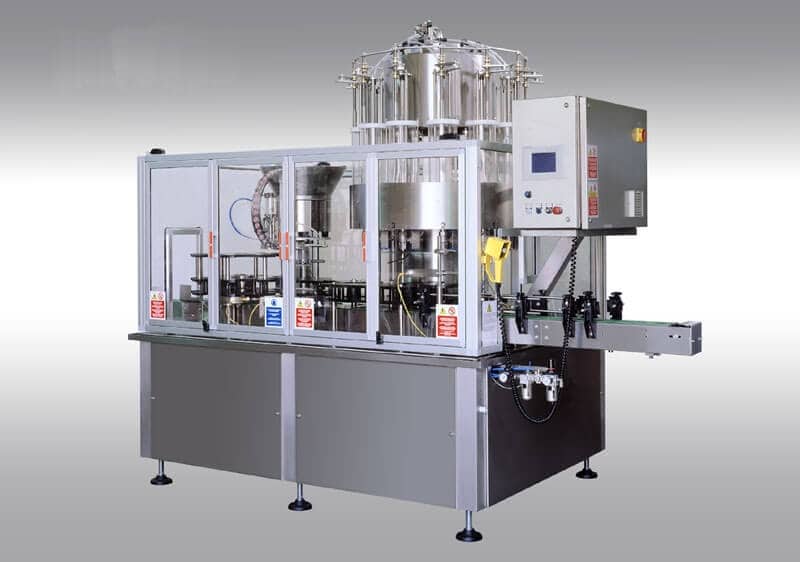

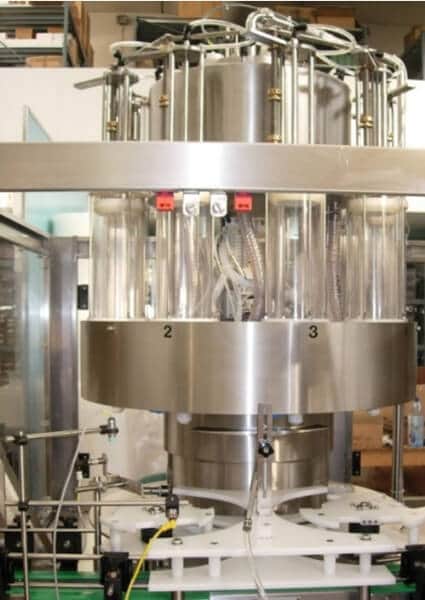

Automatic  volumetric filler for edible oils

Volumetric filling machines supplied with cylinders, suitable for filling of edible oil into PET/HDPE bottles or tins.

Possibility to adjust cylinder capacity.

Filler complete with stainless steel upper tank with stainless steel floating device for liquid level control.

Semi-automatic volumetric piston filler

Patented, high precision, reliable, and easy-to-use piston filling machines for accurate filling of various containers even with very thick liquids, foods/sauces or chemicals.

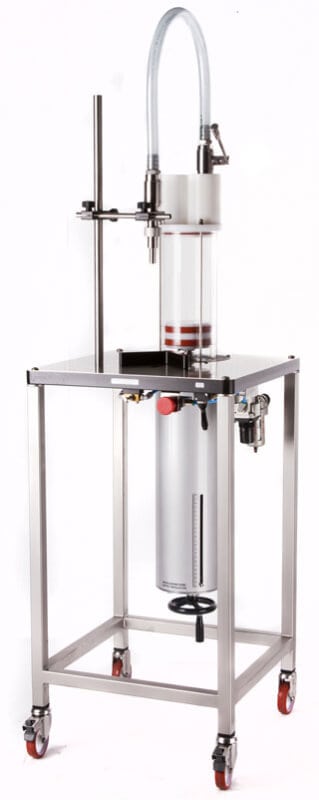

Single & Twin Head Vertical Volumetric Filling Machines

Pneumatic volumetric fillers manufactured with food grade materials. These machines are very light and are easily moved.

These fillers are suitable for filling liquids in every kind of container and are excellent for filling tin cans or plastic bottles with edible oil. Doses between 200ml to 5000 ml can be filled by this machine. Perfect for handling non-foamy products, such as detergents, shampoos, bubble bath liquids etc.

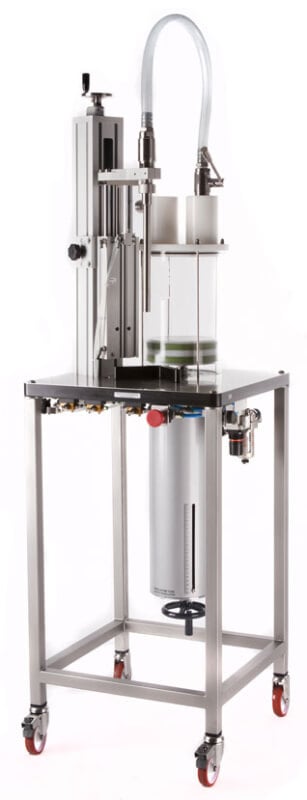

We also have a smaller model to fill 50 to 2000ml. We also supply this machine with diving nozzles to bottom fill containers with foaming products.


For more information, contact our Sales Director Marco Solferini on sales@icfsgroup.com or please call on +39 035 046 0297 (Italy) +44 1865 520 083 (UK) or +1 707 236 6353 (US).  Alternatively, use our chat mechanism at the bottom of the page, use our quick contact form or request a quotation.
