Semi-Automatic Capping Machines
IC Filling Systems can supply a wide range of Semi-Automatic Capping Machines for different applications and caps. Our table top machines are offer capping solutions for metal crown caps, plastic screwcaps and Ropp metal caps.

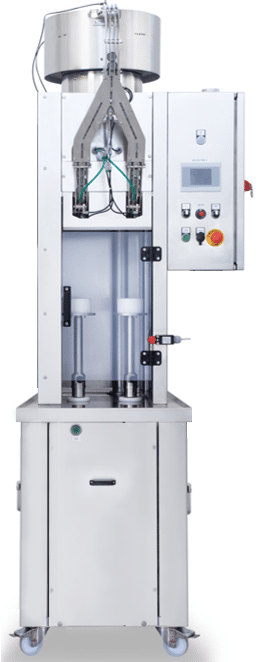

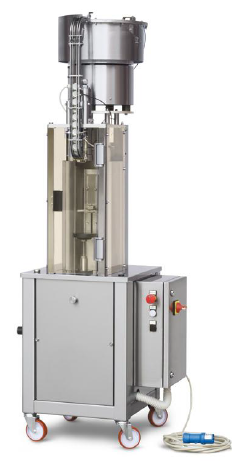

Semi-automatic Crown Capper with automatic cap feeder
Our semi-automatic crown capper is the ideal solution for the application of various size of crown corks from 26 to 29mm on glass bottles.
This unit can be requested as a single-head crown capper or a dual-head crown capper and includes parts for one crown cork format.
It Is fitted with an automatic vibrator feeder and as an option a second capping head that is fed from the same vibrator hopper by means of a dual crown chute.
Just before the bottles pick up the crown from the dispenser, an automatic jet of warm water injects a spray of warm water in the neck of the bottle.
This ensures that the beer is foamed and creates a head of foam that pushes out any residual oxygen from the neck of the bottle immediately prior to capping.
Our crown capper conforms to CE safety regulations, using a two-button starter operating system.
Semi-automatic screw capper for plastic closures
Image below shows semi-automatic table top screw capper for plastic closures. Application on PET plastic bottles and neck fork support.
The PET bottle neck support is fitted with anti-rotation grippers to ensure the correct application of torque is applied, avoiding slipping.
Our semi automatic capper is the ideal solution for the application of various size ROPP closures from 18 to 38mm on glass bottles.
Single head mechanical semiautomatic capper complete with new capping head for one size metal closures conforming to CE safety regulations, using a two button starter operating system.
This type of machine is certified only for aluminium caps.
The semiautomatic mechanic capping machine will be complete of M2009 capping head made in stainless steel, complete of No-Cap-No-Roll safety system, for only one type of diameter of aluminium caps. The head mounted on the machine will be made to close the samples of caps and bottles of the customer. This capper is particularly useful for laboratories, wine makers, and/or small scale productions about 500/600 b/h.

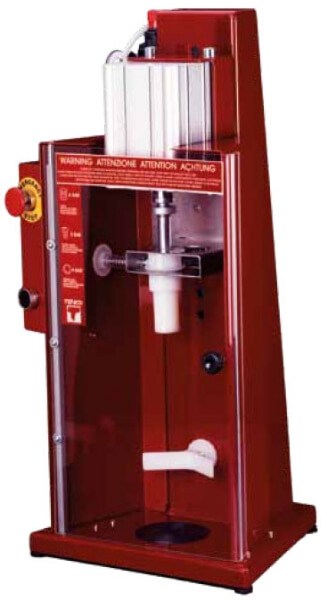

Pneumatic Corker / Corking Machine
Fully air-operated, innovative, patented corker and capper. This is a solid, compact and easy to use machine for perfect corking and capping of Crown cork, agglomerated cork stoppers, synthetic caps with diameters up to 25 mm and height up to 45 mm.
Corks are manually put into the cone. When both start-buttons are switched on, the cork is placed into the bottle by compression, ensuring cork integrity. The special capping head design ensures perfect corking without damages to the cork surface. This corker and capper is equipped with a condensation collection and dump unit, air pressure adjuster to regulate the pressure depending on the type of cork or cap employed.

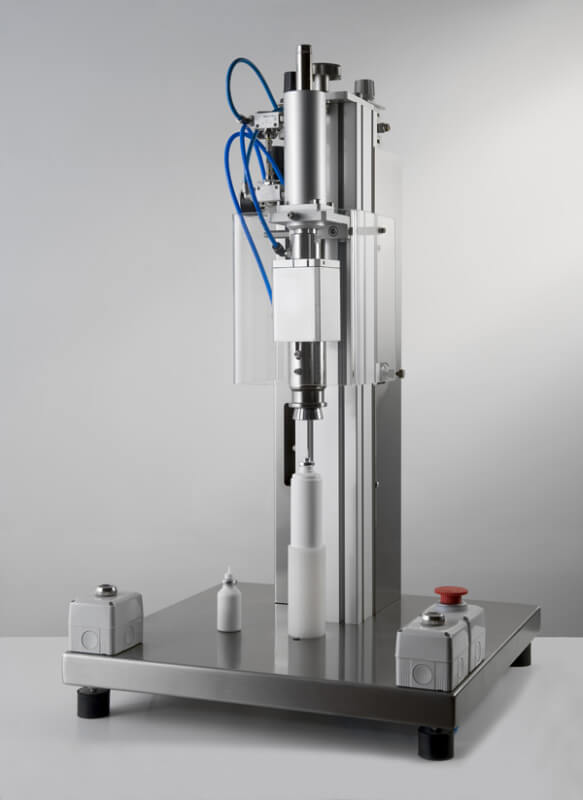

Semi-automatic Crimping machine
Descending head semiautomatic bench top capping machine for PFP caps with or without plastic pourer, pharmaceutical caps for injectable solutions, UT and FEA capsules. The bottle, with the cap placed manually on the neck, is placed on the support plate. By pressing the 2 buttons at both sides of the base, the closing head descends and seals the capsule in a few seconds.
The machine is suitable for closing caps from a minimum of Ø 18 mm to a maximum of 42 mm. The 4 rollers NO CAP NO ROLL closing head is completely manufactured in stainless steel and is adjusted for closing 1 cap size. For each different diameter, it is necessary to purchase a supplementary closing head.

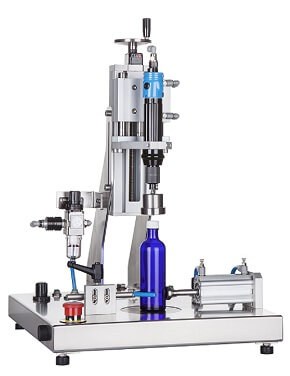

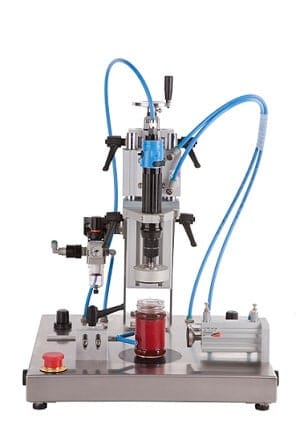

Pneumatic Screw Cappers for bottles and jars
Air operated capper suitable for closing twist off screw caps. The operator put the cap in the magnetic cap chuck and pushes the buttons placed at both sides of the machine base. The closing head descends toward the cap, closing it while a pneumatic system blocks the container preventing it from spinning.
We can also supply capping Heads for ROPP metal closures to suit any existing brand of cappers (Zalkin, Arol, Bertolaso, Alcoa, MBF, etc.)
Contact IC Filling Systems…For detailed information, contact our Sales Director Marco Solferini by calling +39 0141 74166 or +39 035 046 0297 (Italy) +44 1865 520 083 (UK) or +1 707 236 6353 (US). Alternatively, use the contact form below, or request a quotation.
