Bag in Box Filling Machines

IC Filling Systems supply both aseptic and non-aseptic bag in box filling machines for bag in box filling and packaging, whether automatic, semi-automatic or manual.

These machines are suitable for filling any still (non-carbonated) liquid product, including wine, cider, oil, vinegar, fruit concentrates for post-mix, water, liquid food sauces such as tomato ketchup, mayonnaise, or milk.

Automatic Bag in Box Filling Line – BIB AUTOLINE

BIB Autoline Bag in Box Automatic Filling LineThe BIB AUTOLINE is a complete automatic line for high-speed filling and packaging of liquids in Bag in Box packs; it is single-head, modular, scalable and tailored to meet your specific needs.

Technical Characteristics

  • Automatic packaging line for vacuum bags and boxes from 2 to 20 L
  • Multiple applications for all types of liquids
  • Modular design means step-by-step investment possible
  • Packaging line for fixed or mobile use
  • Output production speeds up to 720 3-litre bags per hour
  • BIB AUTOLINE can be supplied as a twin head version

The BIB AUTOLINE single-head automatic filling and packaging line for BIBs includes:

The full line also has options for conveyors, a buffer tank and a weighing system, as well as other peripheral machines if necessary

Semi-Automatic Bag in Box Filling Machines



IC Filling Systems offer a range of efficient and economical bag in box filling machines to meet the needs of small to large volume production of bag-in-box and pouches.

Range of Semi-Automatic Bag in Box Filling Machines

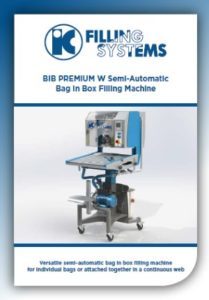

  • BIB PREMIUM W: For web or individual bags, allows management of a variety of recipes and maintaining high rates up to 480 three-litre vacuum bags per hour in Web mode.
  • BIB PREMIUM SS: Differentiated by a chassis made entirely in stainless steel, an adjustable motorised filling head, a set Cleaning in Place (CIP) circuit and a mobile and multi-directional control box. Capacity up to 420 three-litre vacuum bags per hour.
  • BIB PREMIUM: For individual bags and puches, with a capacity of up to 395 three-litre vacuum bags per hour.

Manual Bag in Box Filling



IC Filling Systems offer a range of efficient and economical manual bag in box filling machines to meet the needs of small to large volume production of bag-in-box and pouches.

Range of Manual Bag in Box Filling Machines

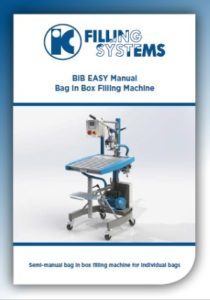

  • BIB EASY: Using gravity flow, perfect for the small and medium-sized production of BIB-type vacuum bags, capacity up to 180 x 3L bags per hour.

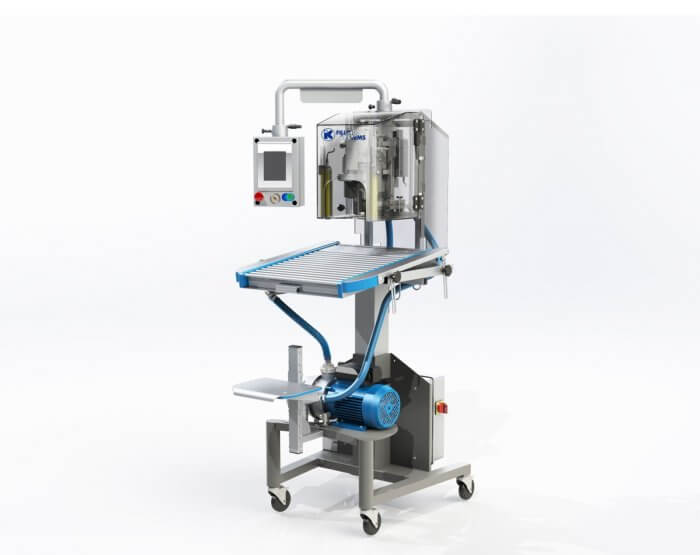

  • BIB EASY PLUS: Complete with chassis and pump, and with a capacity of  up to 280 x 3L bags per hour.
  • BIB EASY SPEED: As the name suggests, made for speed – up to 320 x 3L bags per hour.



For more information, contact our Sales Director Marco Solferini on sales@icfsgroup.com or please call on +39 035 046 0297 (Italy) +44 1865 520 083 (UK) or +1 707 236 6353 (US).  Alternatively, use our chat mechanism at the bottom of the page, use our quick contact form or request a quotation.
