Carton Closing Machines

IC Filling Systems supply carton sealing equipment for low and high speed outputs.

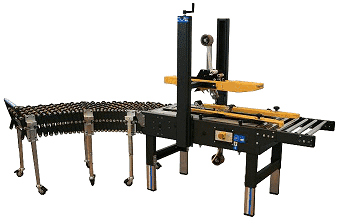

We can offer both hot melt glueing or PVC tape sealing of the cartons.

Automatic Hot Melt Gluing Machine is suitable to close the upper and lower flaps of American carton boxes, already filled in, and to seal them by means of Hot Melt glue.

The machine is complete with:

  • Spacing system for carton boxes.
  • Adjustable device to draw carton boxes by their side, fold and press their flaps
  • Nordson gluing unit
  • Safety guards

Automatic Hot Melt case sealer with side driven belts and manual dimensioning, suitable to seal the lower parts of boxes of the same size coming from filling line. It doesn’t require the presence of an operator.

The box coming from a filling station, with the bottom part sealed, is taken and driven through the driven belts inside the machine where injectors apply 4 strips of Hot Melt glue. The upper flaps, after being folded, are kept in pressure by a suitable presser until the next box arrives.

The Hot Melt sealer doesn’t require the presence of an operator except for the glue adjustments and feeding. It is equipped with an anti-accident guard with panels which prevents the operator from coming into contact with the moving parts or with high temperature parts.
