Microblock: Automatic Champagne & Prosecco Bottling

661 Automatic Microblock for Automatic Filling for Champagne & Prosecco

Rates up to 800 bph for 750ml, with rinsing filling and mushroom corking on one machine, plus option for capsuling, and front, back and neck labelling with bottle alignment.

661 EPV Hybrid on Split Screen showing Canning and Bottling on same machine

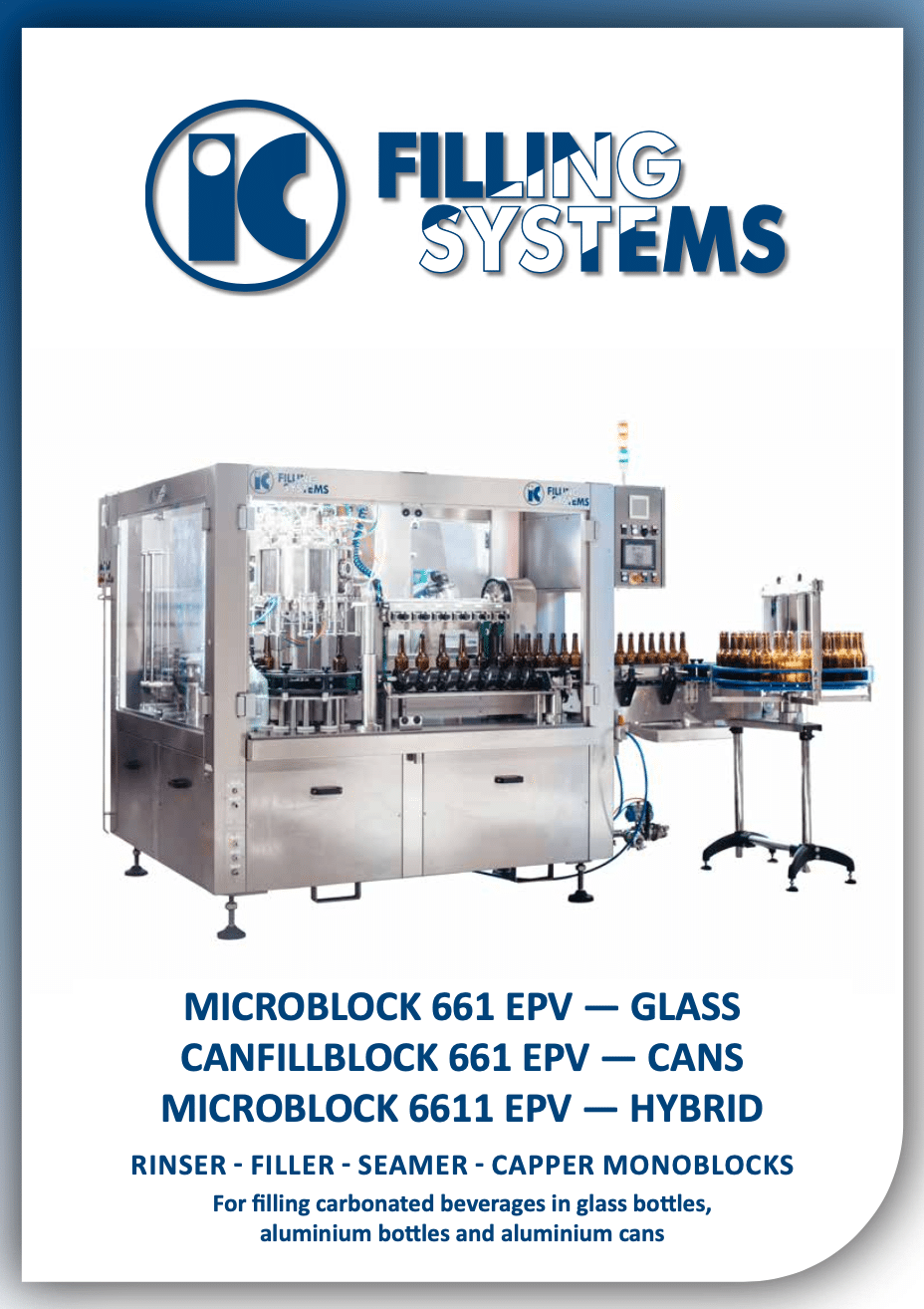

Download the Automatic 661 EPV Bottling / Canning / Hybrid Brochure for full details...

No email needed or form to fill — get the full specifications and full contact details right away in a single 4-page PDF document.

Just click the image or the button below...

The new model of the 661 EPV rinser filler seamer has been fully updated for 2023. Our order book is filling up - please enquire today for delivery windows...

661 EPV Automatic Sparkling Wine, Champagne & Prosecco Configuration

Pick & Place Capper for Champagne & Prosecco Miniature Bottles

Automatic Capsuling and Front, Back and Neck Labelling

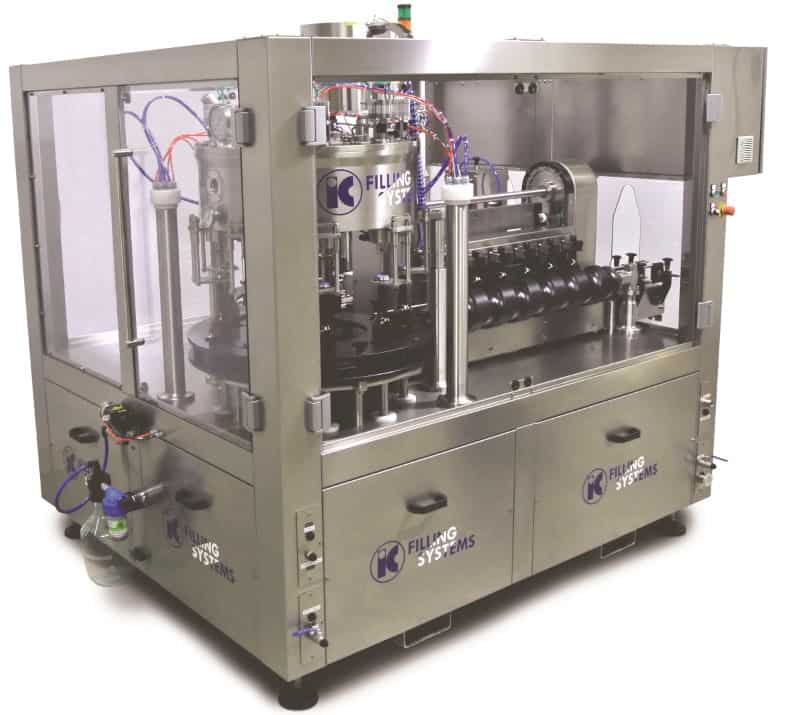

6-6-1 EPV isobaric filling Microblock for Champagne, Prosecco or Sparkling Wine

IC Filling Systems has produced an improved Automatic rinser-filler-corker suitable for champagne, prosecco or sparkling wine.

This high quality, high tech, automatic 6-6-1 bottling machine features new EPV Electro Pneumatic Filling Valves with a counter-pressure isobaric model for carbonated beverages such as champagne, prosecco and other sparkling wines.

Double pre-evacuation, 800 bph (750ml) capacity, and operated by a single operator

The brand new Microblock 661 EPV 2023 model hosts a number of major improvements on its specifications as it places itself as the innovative new generation system compared to similar all-in-one machines on the market.

  1. A single high output filling tank ensures constant product filling levels at top speed
  2. User friendly Omron 7” colour HMI touchscreen control panel & PLC
  3. IoT Smart Device: Full internet connection available as an option for remote technical diagnosis and assistance
  4. Integral Brushless electronic camme operations for more accurate positioning of bottles and faster servicing

The machine is suitable for filling still or sparkling wine or carbonated soft drinks, and it features our new EPV (Electro Pneumatic Valve) technology. The EPV valve allows total flexibility in adjusting the filling cycle by adapting the vacuum filling and degassing timings to the necessity of each different carbonated drink via a colour touchscreen HMI control panel.

Three independent sections driven by servo motors

Microblock 661 EPV for 2023 consists of a Linear Rinsing Section supplied with 6 rinsing nozzles, 6 Electro-pneumatic Isobaric Counterpressure filling valves and a single head Crowning Turret suitable for mushroom cork application on glass bottles. Other cap applications such as ROPP, screw cap, natural straight cork and plastic screw cap and can lids seamer are also possible, and available on request.

The machine is also equipped with a device to detect the bottle on the conveyor (no bottles on conveyor, no rinse) featuring a photocell which stops the machine and closes the rinser electro valve in case of missing bottles and a turret height adjustment system to accommodate different height bottles from 180 to 340mm.

The Microblock 661 EPV 2023 bottle filling machine is hygienic & easy to clean, made from stainless steel wherever possible.

Contact IC Filling Systems…

For detailed information, contact our Sales Director Marco Solferini by calling +39 0141 162 0091 or +39 0141 74166 (Italy) +44 1865 520 083 (UK) or +1 707 236 6353 (US). Alternatively, use the contact form below, or request a quotation.
