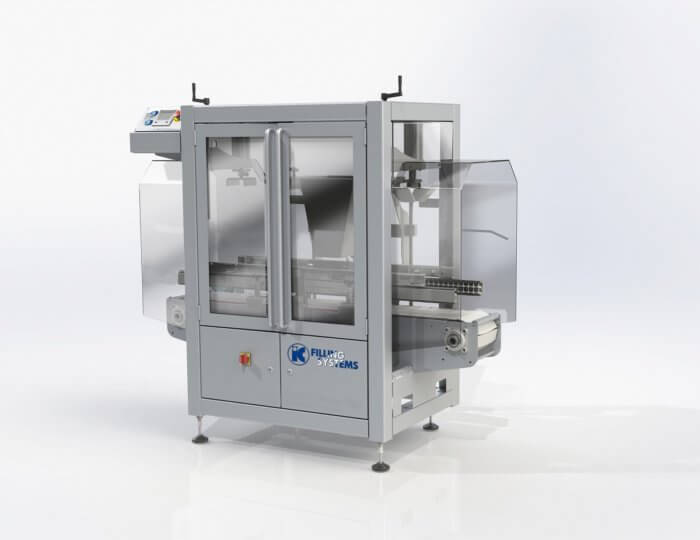

BIB-PACK Bag in Box Insertion Unit

Part of automatic line for filling and packaging liquids in Bag in Box packs

BIB-PACK Bag in Box Insertion Unit Characteristics

Made entirely in stainless steel, the BIB-PACK automatic bag inserter gives you greater production line efficiency by automatically placing your filled vacuum bag-in-box bags inside your personalised boxes.

BIB-PACK automatically carries out the three following actions: opening of the upper box flaps, careful placement of the full bag inside the box, compression of the full bag into the box.

The BIB-PACK automatic bag inserter is able to package vacuum bags of various volumes (from 2 L to 20 L) in different-sized boxes (from 180-80-100 mm to 420-270-380 mm).

BIB-PACK comes with tooling for one box format and allows working with 2 to 20 L boxes.

Other BIB-PACK options

  • Have a look at the AUTOBIB automatic filling machine that lets you fill your vacuum bags before packing
  • The BIB-PACK automatic bag inserter can be built into the BIB AUTOLINE, IC Filling Systems complete bag in box packaging line

BIB-PACK Capacity

Two models:

  • 720 boxes/h
  • 900 boxes/h

BIB-PACK Characteristics

  • Box formats (2 – 20 L): height 180 to 420 mm x width 80 to 270 mm x length 100 to 380 mm
  • Footprint:
    • Height 1550 mm (min)
    • Width 735 mm
    • Depth 1650 mm
    • Weight: 210 kg
  • Number of strokes / min: 12 max
  • Band speed: 28.5 m/min
  • Voltage: 400V+N+T or 220V mono
  • Frequency: 50HZ / 60 HZ
  • Power: 1 KW
  • Pressure: 6 bar
  • Air consumption: 2 m3/h / 6 bar
  • Materials meet the 2006/42/CE Machine Directive requirements

BIB-PACK Standard Configuration

Three functions:

  1. Opening of upper tabs
  2. Placement of full bags with slowing mechanism inside box
  3. Tamping of full bag inside box

Material supplied with tooling for one format to be defined, including opener + chute + tamper
