Semi-Automatic machines for filling and packaging liquids in Bag in Box packs
Semi Automatic Bag in Box Filling
IC Filling Systems offer a range of efficient and economical bag in box filling machines to meet the needs of small to large volume production of bag-in-box and pouches.

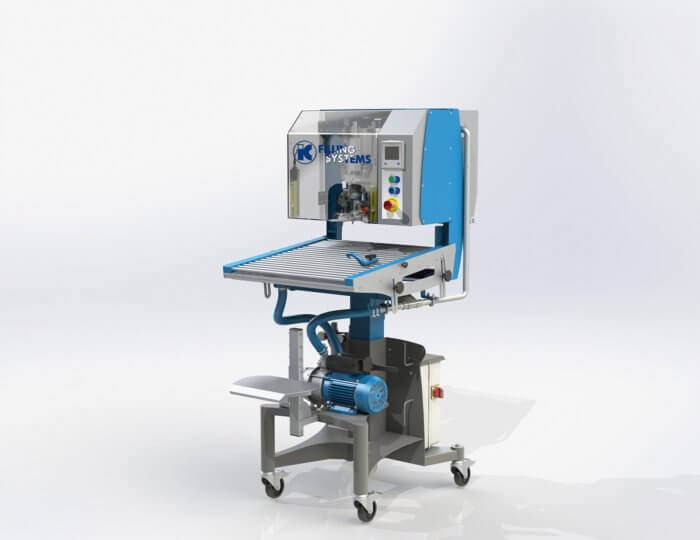

Range of Semi-Automatic Bag in Box Filling Machines
- BIB PREMIUM W: For web or individual bags, allows management of a variety of recipes and maintaining high rates up to 480 three-litre vacuum bags per hour in Web mode.
- BIB PREMIUM SS: Differentiated by a chassis made entirely in stainless steel, an adjustable motorised filling head, a set Cleaning in Place (CIP) circuit and a mobile and multi-directional control box. Capacity up to 420 three-litre vacuum bags per hour.
- BIB PREMIUM: For individual bags and puches, with a capacity of up to 395 three-litre vacuum bags per hour.
PREMIUM W
- Liquid output: 82 HL/h at 0m (standard version), 125 HL/h at 0m (option)
- Min/max air pressure: 5 bars / 8 bars
- Dry air supply: 7 to 10 bars
- Nitrogen supply: 1 to 4 bars
- Nitrogen pressure adjustment: 0.2 to 0.4 bar
- Air flow: 7 m3/h
- Power supply: 400V 3P+T, 50 Hz (standard version)
- Pulse counter: 75.3 points per liter (standard version)
- Connection: Æ 40 Macon
- Noise level < 86 db
- Footprint:
- Depth: 1110 mm
- Height: 1770 mm max
- Width: 745 mm
- Weight: 155 Kg
PREMIUM SS
- Liquid output: 123 HL/h
- Air supply: 7 to 10 bar
- Nitrogen supply: 1 bar
- Air flow: 1 m3/h
- Power supply: 3x400v 50 Hz (3P+T) (other upon request)
- Pulse counter (72 points per litre)
- Connection: Macon diameter 40
- Noise level: < 85 db
- Footprint:
- Depth: 1030 mm
- Height: 1650 mm
- Width: 800 mm
- Weight: 140 kg
PREMIUM
- Liquid output: 82 HL/h / 123 HL/h (optional)
- Air supply: 7 to 10 bar
- Nitrogen supply: 1 bar
- Air flow: 1 m3/h
- Power supply: 3x400v 50Hz (3P+T) (other upon request)
- Pulse counter (72 points per litre)
- Connection: Macon 40 diameter
- Noise level < 85 db
- Footprint:
- Depth: 1030 mm
- Height: 1600 mm
- Width: 800 mm
- Weight: 120 kg
Contact IC Filling Systems…
For more information, contact our Sales Director Marco Solferini on sales@icfsgroup.com or please call on +39 035 046 0297 (Italy) +44 1865 520 083 (UK) or +1 707 236 6353 (US). Alternatively, use our chat mechanism at the bottom of the page, use the form below, or request a quotation.
