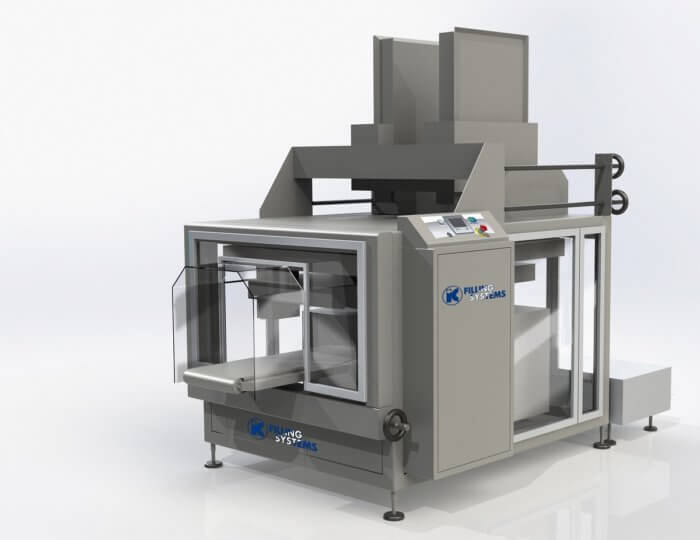

BIB-BOX automatic carton former

Part of automatic line for filling and packaging liquids in Bag in Box packs

Bib Box Carton Former Characteristics

Modern, robust, featuring top performance and fully automated, the BIB-BOX carton former provides very high-speed shaping of 2- to 20-litre boxes, with or without gluing on the inside.

The BIB-BOX automatic carton former operates in a continuous cycle: opening the box, closing the lower flaps, squaring and discharge of the completed box that will hold the BIB.


  • Ease of use: boxes can be loaded without stopping the machine, simplified operator dialogue, change of format in less than 15 minutes, large-capacity box supply storage
  • High-quality work: discharge of the formed box by motorised linear guides, squaring of the box during forming, closing of inside flaps using brackets, rotating arms for full box opening
  • Versatility: supporting plates with suction pads and pre-positioning, adjustments to the millimetre by revolution counters, broad range of box format possibilities
  • The BIB-BOX can be built into the AUTOLINE, IC Filling Systems complete packaging line

BIB-BOX Capacity

Two models:

  • 900 boxes/h
  • 1900 boxes/h

BIB-BOX Characteristics

  • Box storage capacity: 160 2-3 or 5 L boxes, 80 10 L boxes, 70 20 L boxes
  • Footprint: Height 2100 mm (min) x Width 1750 mm x Depth 2250 mm
  • Weight: 1500 kg
  • Air pressure: 7 to 10 bar
  • Voltage: 3x400V+N+T
  • Frequency: 50HZ / 60 HZ
  • Power: 3 KW
  • Air consumption: 30 m3/h / 7 bar
  • Materials meet the 2006/42/CE Machine Directive requirements

BIB-BOX Standard Configuration

  • Compact chassis; box storage compartment without platform
  • Box reloading without stopping the machine
  • Rotating arm for total opening of box
  • Plates with suction pads for three box formats (others in option)
  • Squaring of the box during shaping
  • Operator dialog using light and sound indicators
  • Pre-equipped for connection to BIB Insertion Unit
  • Ejection of the shaped box using motorized linear guides
