NEW Hybrid filler for aluminium cans, aluminium bottles and glass bottles

Automatic Counter-Pressure Hybrid — MICROBLOCK 6611 EPV Filling Machine 2024 Edition

Automatic carbonated beverage filling machine for glass bottles and aluminium cans

IC Filling Systems has produced an improved Automatic Counter-pressure rinser-filler-capper with low oxygen pick up, updated with new improvements for 2024.

This high quality, high tech, automatic beer bottling machine features new EPV Electro Pneumatic Filling Valves, with special pre-evacuation of air which allows low TPO levels. Perfect for bottling wine, soft drinks, cider, kombucha or other still & sparkling drinks.

Delivers up to 1,500bph  — 330ml depending on product type

The brand new Microblock 661 EPV 2024 model hosts a number of major improvements on its specifications as it places itself as the innovative new generation system compared to similar all-in-one machines on the market.

  • It fills glass bottles, aluminium cans and aluminium bottles. Pretty much a first in the industry!
  • It delivers Low TPO levels thanks to a new high performance vacuum pump
  • A single high output filling tank ensures constant product filling levels at top speed
  • User friendly 7” colour HMI touchscreen control panel & PLC
  • IoT Smart Device: Full internet connection available as an option for remote technical diagnosis and assistance
  • Integral Brushless electronic camme operations for more accurate positioning of bottles and faster servicing

The machine is suitable for filling beer, cider, sparkling wine, kombucha and carbonated soft drinks and it features our new EPV (Electro Pneumatic Valve) technology. The EPV valve allows total flexibility in adjusting the filling cycle by adapting the vacuum filling and degassing timings to the necessity of each different carbonated drink via a colour touchscreen HMI control panel.

Three independent sections driven by servo motors

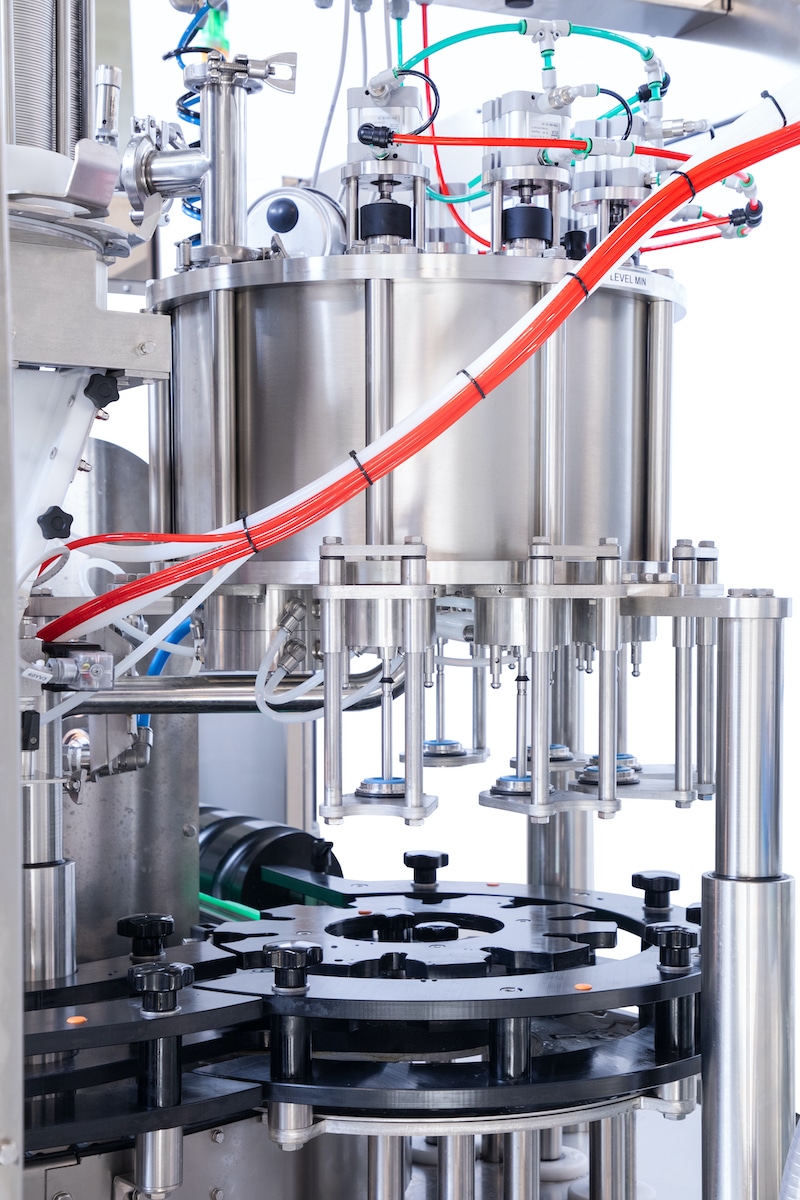

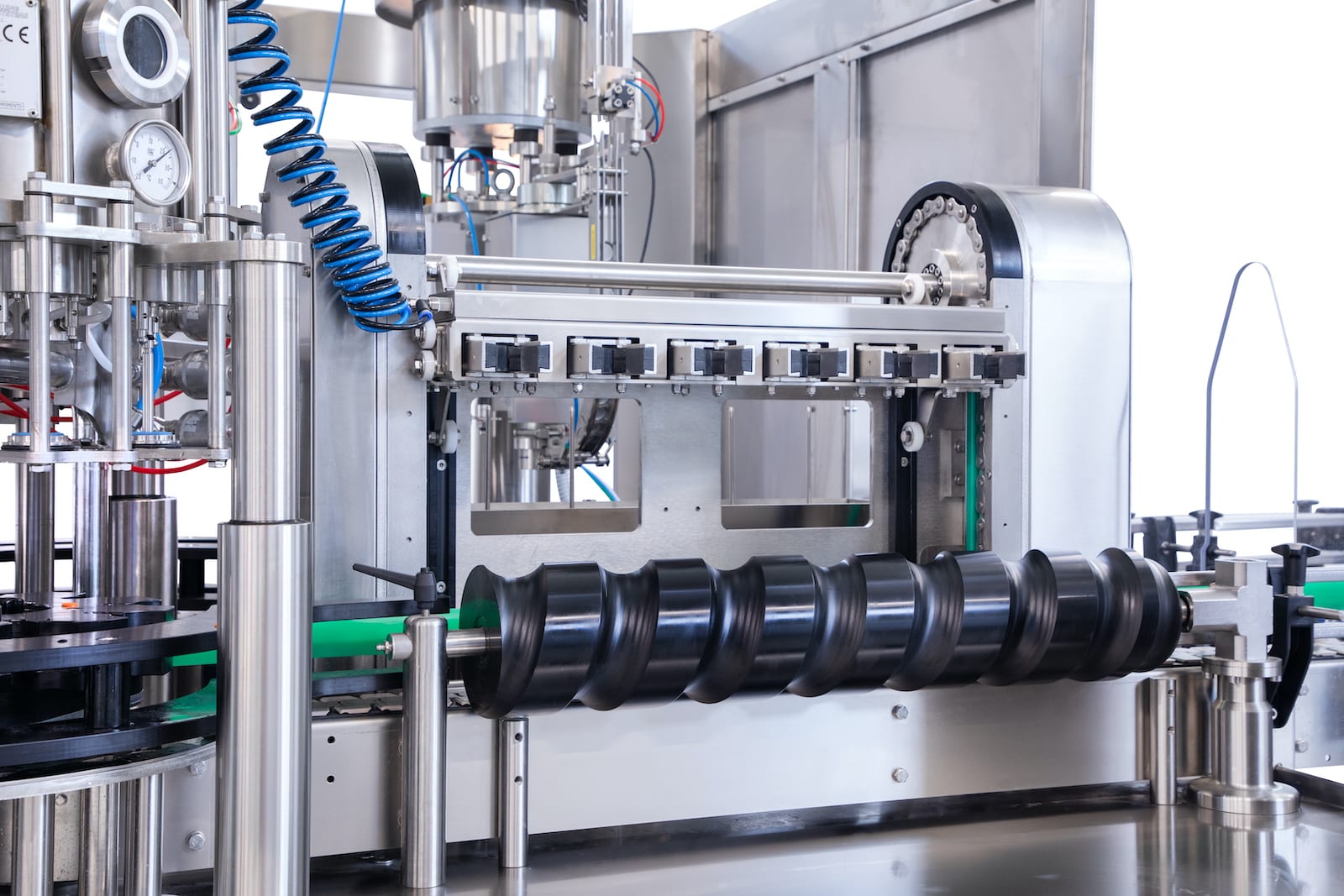

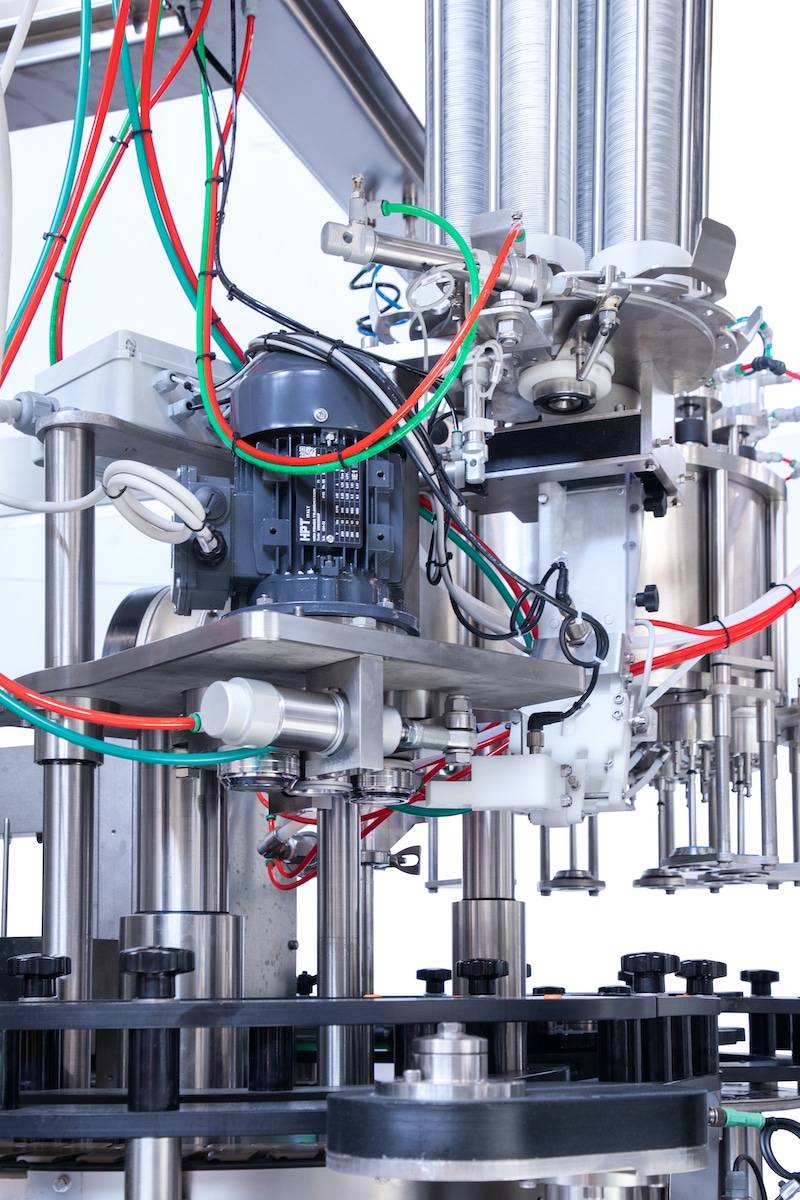

Microblock 661 EPV consists of a Linear Rinsing Section supplied with 6 rinsing nozzles, 6 Electro-pneumatic Isobaric Counterpressure filling valves and a single head Crowning Turret suitable for crown cork application on glass bottles. Other cap applications such as ROPP screw cap, Mushroom cork, natural straight cork and plastic screw cap and can lids seamer are also possible, and available on request.

The machine is also equipped with a device to detect the bottle on the conveyor (no bottles on conveyor, no rinse) featuring a photocell which stops the machine and closes the rinser electro valve in case of missing bottles and a turret height adjustment system to accommodate different height bottles from 180 to 340mm.

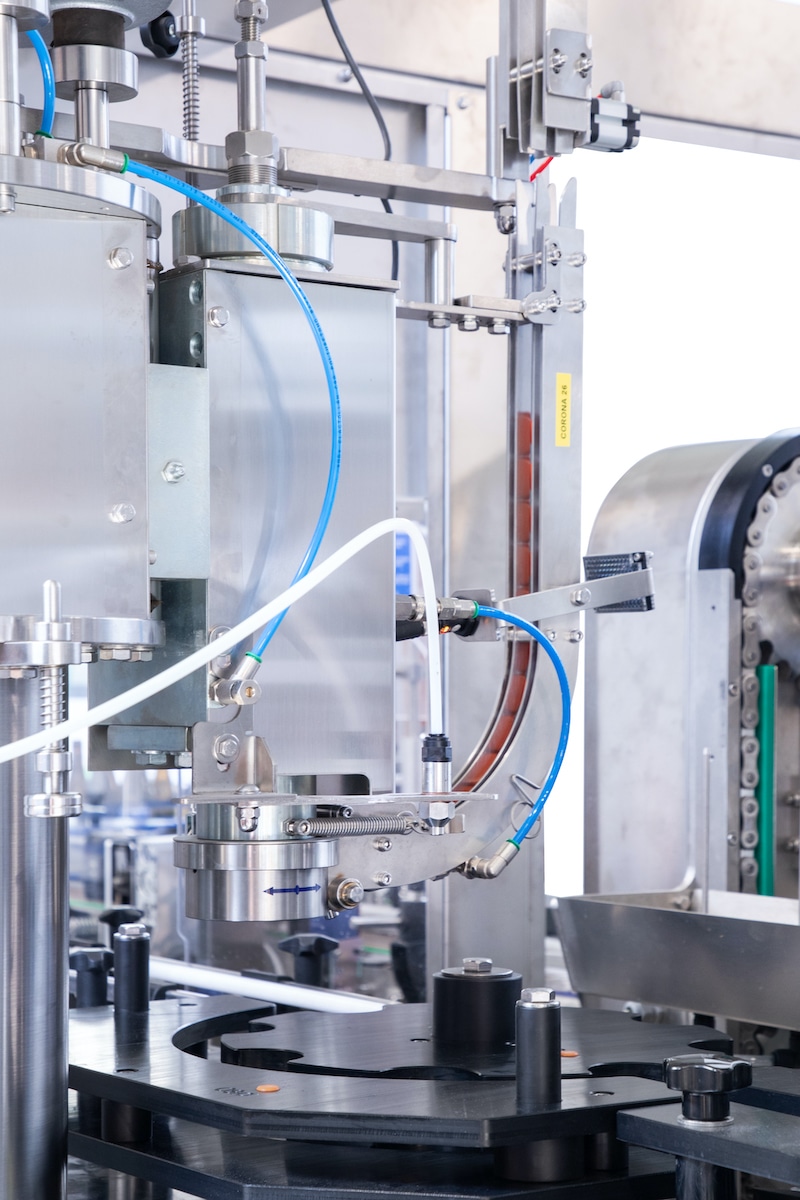

The capper can close both 26mm and 29mm crown caps. The 661 EPV Microblock bottle filling machine is hygienic & easy to clean, made from stainless steel wherever possible.

Videos

Video: [2m13s] Full Sequence on Automatic 661 EPV Monoblock with Bottling Configuration

Kombucha Bottling on the 6611 Hybrid

661 EPV Hybrid on Split Screen showing Canning and Bottling on same machine

Download the Automatic 6611 EPV Hybrid Brochure for full details...

No email needed or form to fill — get the full specifications and full contact details right away in a single 4-page PDF document.

Download the Automatic 661 EPV Bottling / Canning / Hybrid Brochure for full details...

No email needed or form to fill — get the full specifications and full contact details right away in a single 4-page PDF document.

Image gallery

This automatic beer bottling machine represents the best solution available for entry level automatic beer filling lines.

Ask for a quote for the 661 Automatic Machine

Suitable for beer or cider rinsing filling and capping at up to 1,500 bottles per hour (330ml). Drop us a line today for a free quote!
