Microblock: Automatic, Versatile and Economical for Beer

661 EPV Microblock for Automatic Counterpressure Filling for Beer & Cider

Rates up to 1,500 bph for 330ml (depending on  product type), with canning or bottling option from the same machine

661 EPV Hybrid on Split Screen showing Canning and Bottling on same machine

Download the Automatic 661 EPV Bottling / Canning / Hybrid Brochure for full details...

No email needed or form to fill — get the full specifications and full contact details right away in a single 4-page PDF document.

Just click the image or the button below...

The new model of the 661 EPV rinser filler seamer has been fully updated for 2024. Our order book is filling up - please enquire today for delivery windows...

Video: [2m10s] Canning Configuration

Video: [2m13s] Bottling Configuration

661 EPV isobaric filling Microblock for Beer or Cider

IC Filling Systems has produced an improved Automatic rinser-filler-capper suitable for a variety of uses.

This high quality, high tech, automatic 661 bottling machine features new EPV Electro Pneumatic Filling Valves in two mainstream versions: a counter-pressure isobaric model for carbonated beverages, and a vacuum assisted gravity filler for still products. This is suitable for filling all sorts of beers and ciders.

Double pre-evacuation, 1,500 bph (330ml) capacity, and operated by a single operator

The brand new Microblock 661 EPV model hosts a number of major improvements on its specifications as it places itself as the innovative new generation system compared to similar all-in-one machines on the market.

  1. It fills glass bottles, aluminium cans and aluminium bottles. Pretty much a first in the industry!
  2. It delivers Low TPO levels thanks to a new high performance vacuum pump
  3. A single high output filling tank ensures constant product filling levels at top speed
  4. User friendly 7” colour HMI touchscreen control panel & PLC
  5. Ethernet connection available as an option for remote technical diagnosis and assistance
  6. Integral Brushless electronic cam operations for more accurate positioning of bottles or cans and faster servicing

The machine is suitable for filling beer, cider, wine (still or sparkling) or carbonated soft drinks, and it features our new EPV (Electro Pneumatic Valve) technology. The EPV valve allows total flexibility in adjusting the filling cycle by adapting the vacuum filling and degassing timings to the necessity of each different carbonated drink via a colour touchscreen HMI control panel.

Three independent sections driven by servo motors

The Microblock 661 EPV consists of a Linear Rinsing Section supplied with 6 rinsing nozzles, 6 Electro-pneumatic Isobaric Counterpressure filling valves and a single head Crowning Turret suitable for crown cork application on glass bottles. Other cap applications such as ROPP, screw cap, Mushroom cork, natural straight cork and plastic screw cap and can lids seamer are also possible, and available on request.

The machine is also equipped with a device to detect the bottle on the conveyor (no bottles on conveyor, no rinse) featuring a photocell which stops the machine and closes the rinser electro valve in case of missing bottles and a turret height adjustment system to accommodate different height bottles from 180 to 340mm.

The capper can close both 26mm and 29mm crown caps. The Microblock 661 EPV bottle filling machine is hygienic & easy to clean, made from stainless steel wherever possible.

Contact IC Filling Systems…

For detailed information, contact our Sales Director Marco Solferini by calling +39 0141 162 0091 or +39 0141 74166 (Italy) +44 1865 520 083 (UK) or +1 707 236 6353 (US). Alternatively, use the contact form below, or request a quotation.

Checking...

Ouch! There was a server error.
Retry »

Sending message...

Send us your enquiry today...

Tell us what you need to know, and we'll respond promptly.

GDPR data storage consent:



Please do the sum:

4 + 8 =

You can attach an image or PDF (Max 10MB)

Other 661 Automatic Microblock Configuration Options

661 Microblock Automatic Can / Bottle Filling Machine

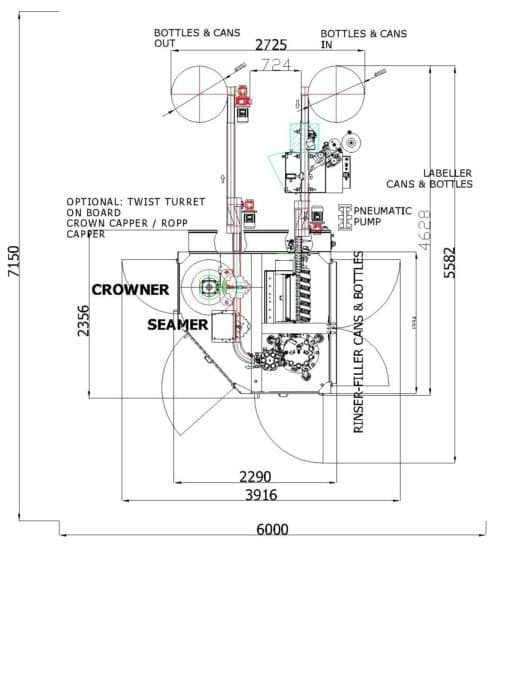

Compact layout for 6-6-1-1

661 EPV Hybrid on Split Screen showing Canning and Bottling on same machine



Advertising campaign launched by Fuggle Cerveceria in Bogota, Colombia, featuring the 661 EPV hybrid bottling equipment (for cans & bottles) manufactured by IC Filling Systems srl.

Self Levelling Filling Mechanism also used on Automatic Machines
